Customizable roller collision avoidance system, suitable for various working conditions
1. Overview
This collision avoidance system calculates distance and left and right deviation data, allowing drivers to receive warnings or detect potential dangers in advance. If necessary, it can actively brake, effectively increasing driving safety. It can be widely applied to construction sites of various transportation vehicles and large mechanical equipment.
This system consists of five functional systems: radar detection system, warning system, auxiliary braking system, human-machine interaction system, and equipment operation monitoring and management system. The radar detection system is installed in the front and rear of the equipment, and continuously emits and receives electromagnetic wave signals to display the distance of the nearest object within the detection range. Based on the human-machine interaction settings, the system performs calculations and analysis, sends designated signals to remind drivers or actively intervene in equipment driving, and builds an effective safety barrier for the construction site.
2. System features
(1) The detection safety zone, alarm distance, and speed parameters can be freely and flexibly set, perfectly adapting to various working conditions.
(2) Human computer interaction friendly interface, easy to install and use, no need for specialized training for operators.
(3) External LED large screen displays customizable reminder information to enhance the image of construction companies.
(4) Easy installation, sturdy structure, dust-proof and waterproof treatment, suitable for various construction environments.
(5) Can adapt to various domestic and foreign brands of construction machinery equipment.
3.technical parameter
| |
| item |
parameter |
remarks |
| supply voltage |
DC10~30V |
|
| Working width range |
0.2m~4m |
Front, back, left, and right can be independently set separately |
| Working distance range |
0.2m~10m |
Warning settings can be graded |
| Detecting working height |
＞(h-20)cm |
At a distance of 2 meters, hcm is the installation height of the radar above the ground |
| Number of radars |
Front 1, back 1 |
Integrated LED display |
| Radar detection range |
20m |
|
| Measure the lateral scattering angle |
120° |
|
| Measure longitudinal scattering angle |
14° |
|

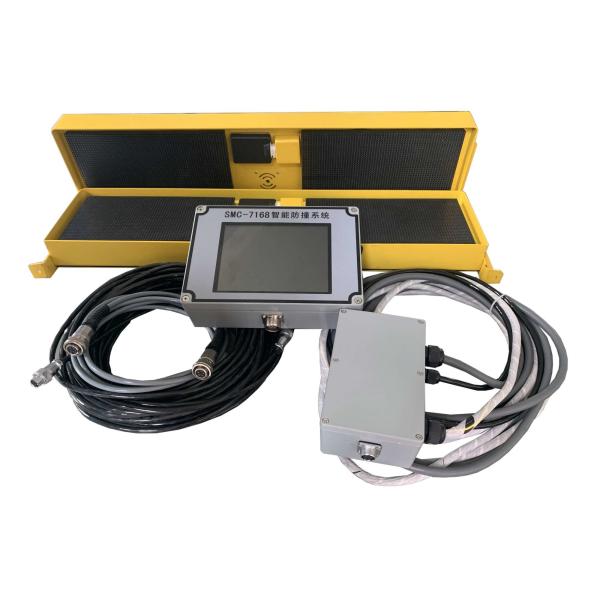

4.System Configuration Table
| |
| item |
number |
remarks |
| 10 inch high-definition display screen |
1 |
|
| Control junction box |
1 |
including wiring harness |
| Radar detection sensor |
2 |
Integrated LED display and buzzer,Dual screen display, capable of alternating flashing |
| Wire harness |
2 |
Adopting a corrugated pipe set, it can be wear-resistant, oil resistant, and high-temperature resistant |
| Solenoid valve |
|
Configure and use auxiliary brakes as needed |
| Electromagnetic valve plug |
|
Common models do not require damaging the original vehicle cables and can be directly plugged in and out for use |
